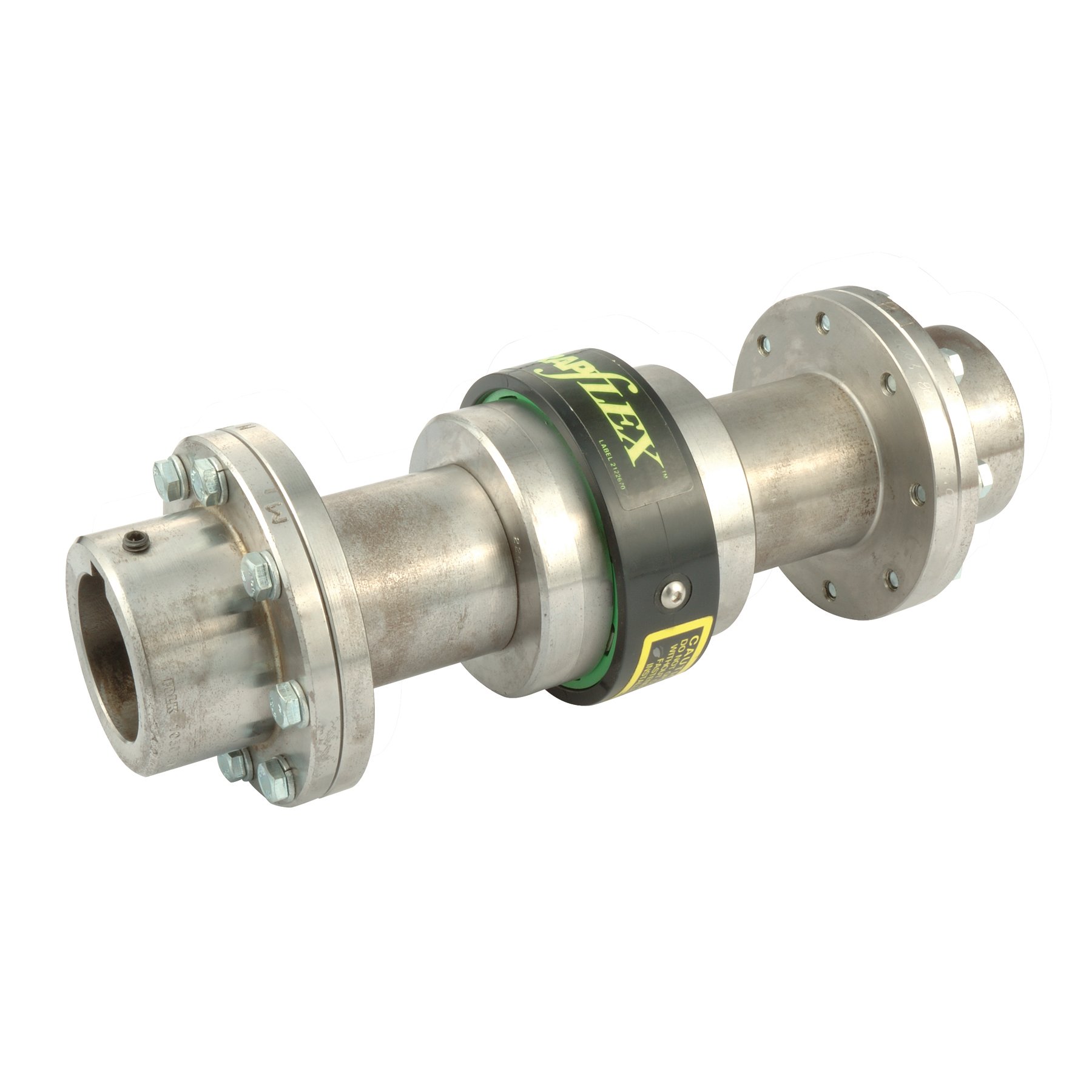

Wrapflex Elastomeric Couplings

Rexnord Wrapflex Elastomeric Couplings are non lubricated
Rexnord Wrapflex Elastomeric Couplings are non lubricated, material-flexing couplings,
which are used in a variety of applications in many industries. They have excellent
vibration dampening capability and high-misalignment capacity, providing extended life to
connected equipment. The couplings offer a replace-in-place design for quick installation
and replacement.

Additional information

Benefits	– Polyurethane element provides excellent wear and chemical resistance – Offers an operating temperature range of -40 to 200 F (-40 to 93 C) – Patented hub and flex element design ensure long life – 12 sizes – ATEX certified – Up to 133,000 in-lb (15,027 Nm) torque capacity – Up to 7.25 inches (184 mm) bore capacity – Up to 4,500 rpm – Close-coupled and spacer designs available to accommodate shaft spacing
Technical data	Contac Petrotech Team for more information

Benefits

– Polyurethane element provides excellent wear and chemical resistance
– Offers an operating temperature range of -40 to 200 F (-40 to 93 C)
– Patented hub and flex element design ensure long life
– 12 sizes
– ATEX certified
– Up to 133,000 in-lb (15,027 Nm) torque capacity
– Up to 7.25 inches (184 mm) bore capacity
– Up to 4,500 rpm
– Close-coupled and spacer designs available to accommodate shaft spacing

Technical data

Contac Petrotech Team for more information
