Rexnord Planetgear Concentric Inline Gear Drives
Rexnord Planetgear Concentric Inline Gear Drives feature rugged designs to
meet every operating challenge, and they're site proven in the world's most
demanding applications. Planetgear concentric inline gear reducers offer reliable
operation through self-aligning planet carriers that float radially and axially to
provide perfect alignment of the drive train. State-of-the-art materials and
processes provide hardened, wear-resistant gearing that handles heavy-duty
applications and shock loads. Rexnord Planetgear gear reducers are backed by a
3-year heavy-duty warranty.

Additional information

Benefits	– 19 sizes – Handles high shock loads, 250% overload – Internal backstop for easy field installation – Solid or hollow output for shaft mounted configurations – Taconite-duty seals provide optimal performance and long seal life – Horizontal, vertical or tilt mounting available for foot mounted configurations
Technical data	Rexnord Planetgear 7000 series Atlas size drive has a standard ratio range of 4.39 – 1255 and a torque range of 43,000 – 26,000 inch pounds Rexnord Planetgear 7000 series Delta size drive has a standard ratio range of 11.02 – 1785 and a torque range of 154,000 – 121,000 inch pounds. Rexnord Planetgear 7000 series Earth size drive has a standard ratio range of 3.53 – 1785 and a torque range of 76,000 – 42,000 inch pounds. Rexnord Planetgear 7000 series Venus size drive has a standard ratio range of 3.53 – 1255 and a torque range of 24,000 – 17,000 inch pounds. Rexnord Planetgear 7000 series Jupiter Plus size drive has a standard ratio range of 13.85 – 1785 and a torque range of 905,000 – 522,000 inch pounds Rexnord Planetgear 7000 series Luna size drive has a standard ratio range of 4.39 – 1255 and a torque range of 51,000 – 37,000 inch pounds. Rexnord Planetgear 7000 series Mars size drive has a standard ratio range of 3.53 – 1785 and a torque range of 18,000 – 7,000 inch pounds. Rexnord Planetgear 7000 series Mercury size drive has a standard ratio range of 3.53 – 1785 and a torque range of 8,000 – 3,000 inch pounds Rexnord Planetgear 7000 series Neptune size drive has a standard ratio range of 3.53 – 1785 and a torque range of 160,000 – 75,000 inch pounds Rexnord Planetgear 7000 series Neptune Plus size drive has a standard ratio range of 3.53 – 1785 and a torque range of 238,000 – 117,000 inch pound Rexnord Planetgear 7000 series Orion Plus size drive has a standard ratio range of 3.53 – 1785 and a torque range of 316,000 – 117,000 inch pounds Rexnord Planetgear 7000 series Saturn Plus size drive has a standard ratio range of 11.02 – 1785 and a torque range of 450,000 – 250,000 inch pounds. Rexnord Planetgear 7000 series Titan Plus size drive has a standard ratio range of 11.02 – 1785 and a torque range of 643,000 – 405,000 inch pounds. Planetgear 7000 series drives are foot mounted drives that can be mounted in both horizontal and vertical orientations and also feature many standard accessories such as flanged motor mounts, slidebases, top motor mounts, internal backstops, and shaft fans. All Planetgear gear reducers are backed by a 3-year, heavy-duty warranty. Rexnord Planetgear SMP series Orion size drive has a standard ratio range of 11.02 – 1785 and a torque range of 280,000 – 140,000 inch pounds. Rexnord Planetgear SMP series Gemini size drive has a standard ratio range of 11.02 – 1785 and a torque range of 1,759,000 – 798,000 inch pounds. Rexnord Planetgear SMP series Hercules size drive has a standard ratio range of 43.78 – 1785 and a torque range of 2,999,000 – 1,779,000 inch pounds. Rexnord Planetgear SMP series Jupiter size drive has a standard ratio range of 13.85 – 1785 and a torque range of 830,000 – 477,000 inch pounds Rexnord Planetgear SMP series Titan size drive has a standard ratio range of 11.02 – 1785 and a torque range of 480,000 – 251,000 inch pounds. Planetgear SMP series drives are shaft mounted drives that come with a hollow low speed shaft and a shrink disk for mounting. The SMP series drives can be mounted in both horizontal and vertical orientations, and feature many standard motor mounting options such as motor flanges, top motor mounts, and motor scoops. All Planetgear gear reducers are backed by a 3-year, heavy-duty warranty.

Benefits

– 19 sizes
– Handles high shock loads, 250% overload
– Internal backstop for easy field installation
– Solid or hollow output for shaft mounted configurations
– Taconite-duty seals provide optimal performance and long seal life
– Horizontal, vertical or tilt mounting available for foot mounted configurations

Technical data

Rexnord Planetgear 7000 series Atlas size drive has a standard ratio range of 4.39 –
1255 and a torque range of 43,000 – 26,000 inch pounds

Rexnord Planetgear 7000 series Delta size drive has a standard ratio range of 11.02 –
1785 and a torque range of 154,000 – 121,000 inch pounds.

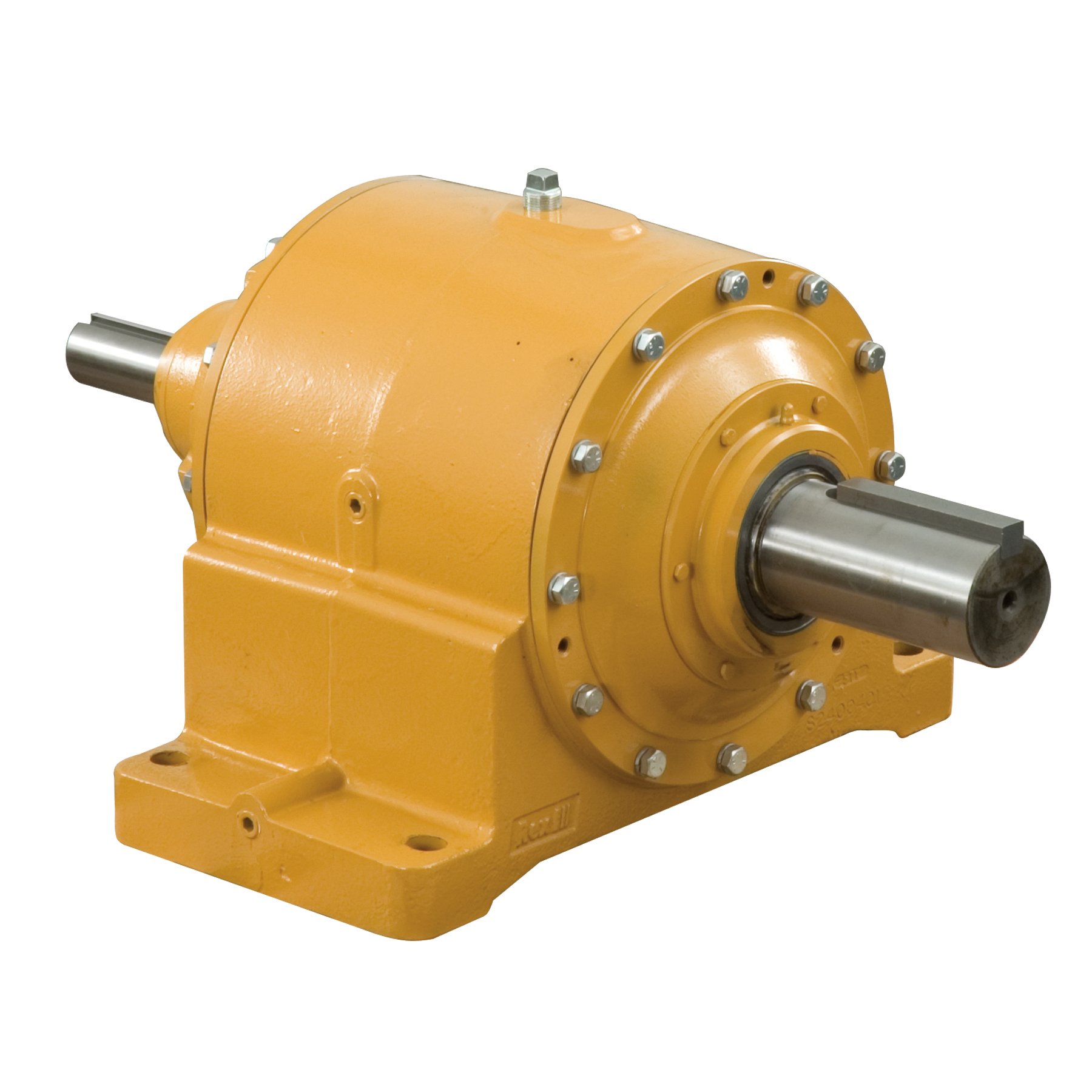

Rexnord Planetgear 7000 series Earth size drive has a standard ratio range of 3.53 –
1785 and a torque range of 76,000 – 42,000 inch pounds.
Rexnord Planetgear 7000 series Venus size drive has a standard ratio range of 3.53 –
1255 and a torque range of 24,000 – 17,000 inch pounds.
Rexnord Planetgear 7000 series Jupiter Plus size drive has a standard ratio range of
13.85 – 1785 and a torque range of 905,000 – 522,000 inch pounds
Rexnord Planetgear 7000 series Luna size drive has a standard ratio range of 4.39 –
1255 and a torque range of 51,000 – 37,000 inch pounds.

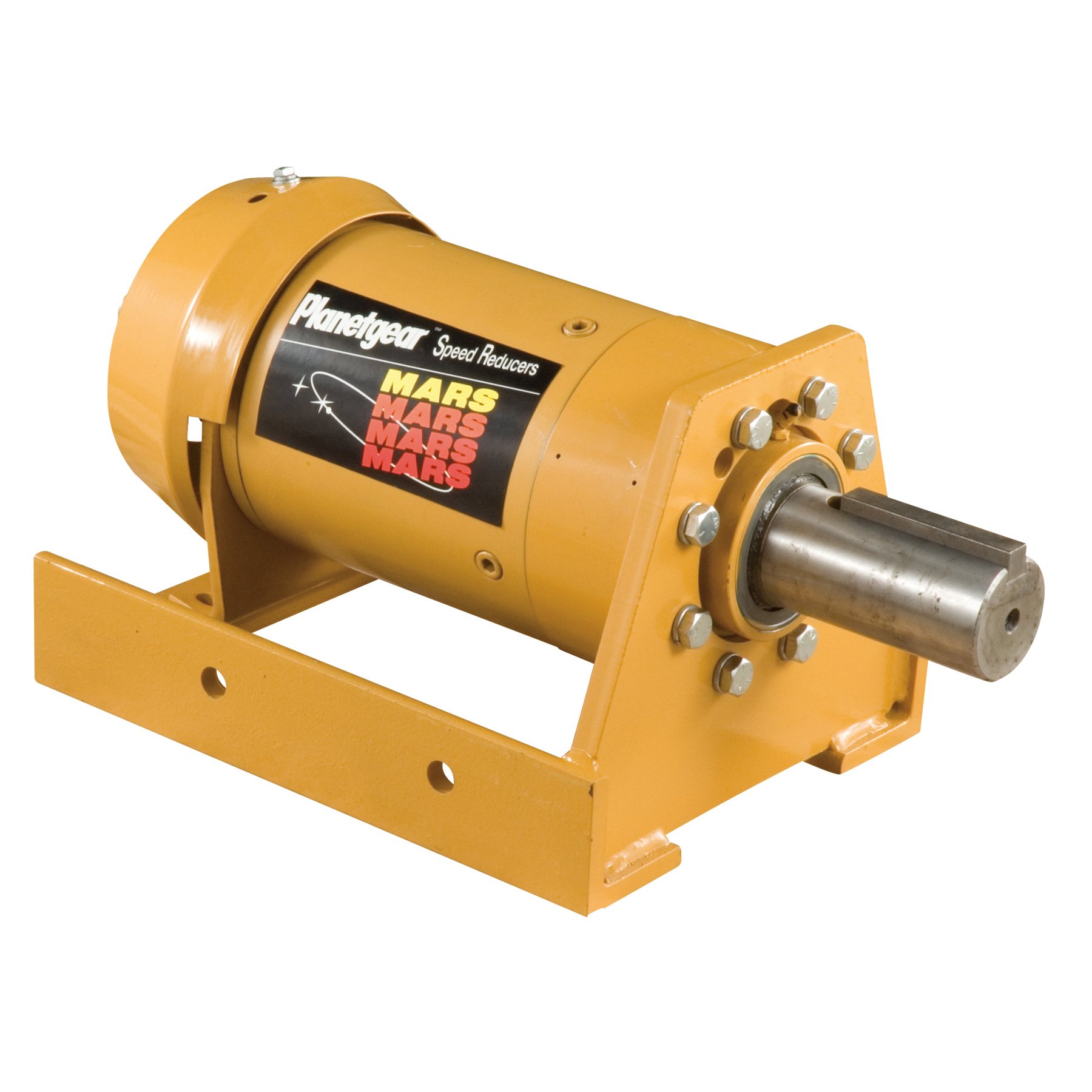

Rexnord Planetgear 7000 series Mars size drive has a standard ratio range of 3.53 –
1785 and a torque range of 18,000 – 7,000 inch pounds.
Rexnord Planetgear 7000 series Mercury size drive has a standard ratio range of 3.53
– 1785 and a torque range of 8,000 – 3,000 inch pounds
Rexnord Planetgear 7000 series Neptune size drive has a standard ratio range of 3.53
– 1785 and a torque range of 160,000 – 75,000 inch pounds
Rexnord Planetgear 7000 series Neptune Plus size drive has a standard ratio range of
3.53 – 1785 and a torque range of 238,000 – 117,000 inch pound
Rexnord Planetgear 7000 series Orion Plus size drive has a standard ratio range of
3.53 – 1785 and a torque range of 316,000 – 117,000 inch pounds
Rexnord Planetgear 7000 series Saturn Plus size drive has a standard ratio range of
11.02 – 1785 and a torque range of 450,000 – 250,000 inch pounds.
Rexnord Planetgear 7000 series Titan Plus size drive has a standard ratio range of
11.02 – 1785 and a torque range of 643,000 – 405,000 inch pounds.
Planetgear 7000 series drives are foot mounted drives that can be mounted in both
horizontal and vertical orientations and also feature many standard accessories such as
flanged motor mounts, slidebases, top motor mounts, internal backstops, and shaft fans.
All Planetgear gear reducers are backed by a 3-year, heavy-duty warranty.

Rexnord Planetgear SMP series Orion size drive has a standard ratio range of 11.02 –
1785 and a torque range of 280,000 – 140,000 inch pounds.

Rexnord Planetgear SMP series Gemini size drive has a standard ratio range of 11.02
– 1785 and a torque range of 1,759,000 – 798,000 inch pounds.
Rexnord Planetgear SMP series Hercules size drive has a standard ratio range of
43.78 – 1785 and a torque range of 2,999,000 – 1,779,000 inch pounds.
Rexnord Planetgear SMP series Jupiter size drive has a standard ratio range of 13.85
– 1785 and a torque range of 830,000 – 477,000 inch pounds
Rexnord Planetgear SMP series Titan size drive has a standard ratio range of 11.02 –
1785 and a torque range of 480,000 – 251,000 inch pounds.
Planetgear SMP series drives are shaft mounted drives that come with a hollow low
speed shaft and a shrink disk for mounting. The SMP series drives can be mounted in
both horizontal and vertical orientations, and feature many standard motor mounting
options such as motor flanges, top motor mounts, and motor scoops. All Planetgear gear
reducers are backed by a 3-year, heavy-duty warranty.
